Premium line recessed light, Quadro White, Swivelling

More Recessed Lights

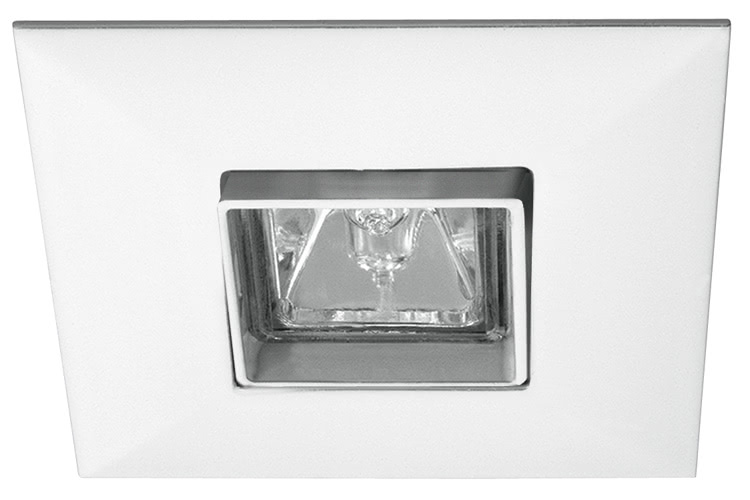

Elegant material – high-quality finish. The individually swivelling halogen 12 V recessed luminaires of the Premium Line offer brilliant light and fulfil even the highest expectations for material quality and design.

  ARTICLE    5705 ( 57.05 )
  EAN    4000870057056       0
  Colour    White
  Depth    90 mm
  Dimensions (Height x Width x Depth)    B: 90 x T: 90 mm
  IP protection    IP23 ceiling mounting
  Installation site    Ceiling mounting
  Installation site (recommendation)    Ceiling mounting
  MM symbol    MM symbol
  Material    Aluminium zinc
  Maximum wattage    Max. 35 W

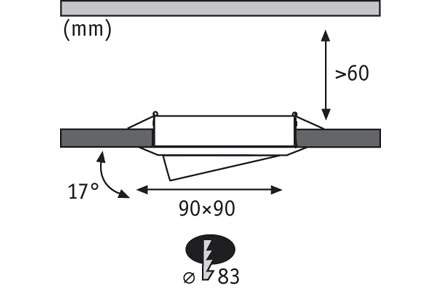

  Mounting depth    60 mm
  Mounting hole    83 mm
  Swivel range    17 В°
  Technique    Lamp without bulb
  UV stop    UV-Stop
  Video    Видео светильника Paulmann 5705
  Width    90 mm
  Breadth product    90 mm
  Color    White
  Depth of hollow wall    45 mm
  Depth packing    11,500 cm
  Depth product    90 mm
  Form    Square
  Height packing    4,000 cm
  Low pressure    Low pressure
  Maximum capacity    1x35 W
  Mounting opening    83 mm
  Operating voltage    12 V
  Packing unit SAP    1
  Plug-and-socket connector    Plug-and-socket connector
  Protection class    Protection class III
  Socket    GU5,3
  Stainless    Stainless alu
  Starting time <    0,0 s
  Watt    Max. 1x35 W
  Width packing    9,500 cm
  Width product    90 mm
  Working voltage    12 V
