Premium line recessed light, Quadro Brushed iron, Swivelling

More Recessed Lights

Elegant material – high-quality finish. The individually swivelling halogen 12 V recessed luminaires of the Premium Line offer brilliant light and fulfil even the highest expectations for material quality and design.

  ARTICLE    5709 ( 57.09 )
  EAN          0
  Colour    Brushed iron

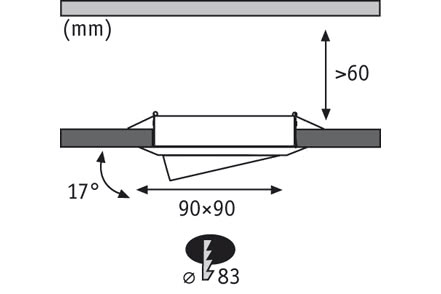

  Dimensions (Height x Width x Depth)    B: 90 x T: 90 mm
  Dimmable    The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used.
  Form    Eckig
  IP protection    IP23 ceiling mounting
  Installation site (recommendation)    Ceiling mounting
  MM symbol    MM symbol
  MM-Zeichen    MM-Zeichen
  Material    Aluminium zinc
  Max. Leistung    Max. 35 W
  Maximum wattage    Max. 35 W
  Montageort Empfehlung    Deckenmontage
  Mounting depth    60 mm
  Mounting hole    83 mm
  Niederdruck    Niederdruck
  Swivel range    17 В°
  UV Stop    UV-Stop
  UV stop    UV-Stop
  Video    Видео светильника Paulmann 5709
  ZГјndzeit <    0,0 s
  Depth of hollow wall    45 mm
  Low pressure    Low pressure
  Mit Steckverbinder    Mit Steckverbinder
  Operating voltage    12 V
  Plug-and-socket connector    Plug-and-socket connector
  Protection class    Protection class III
  Socket    GU5,3
  Stainless    Stainless alu
  Starting time <    0,0 s
  Инструкция    Установка светильника Paulmann 57.09
  P2005    301 страница
  P2006    309 страница
  P2007    375 страница
  P2008    326 страница
  P2009    339 страница
  P2010    339 страница
  P2011    328 страница
  P2012    307 страница
  P2013    324 страница
  P2014    289 страница
  P2015    269 страница
  LENGTH    95
  WIDTH    40
  HEIGHT    115
  WEIGHT    0.282
  PCS    1
