YourLED ECO

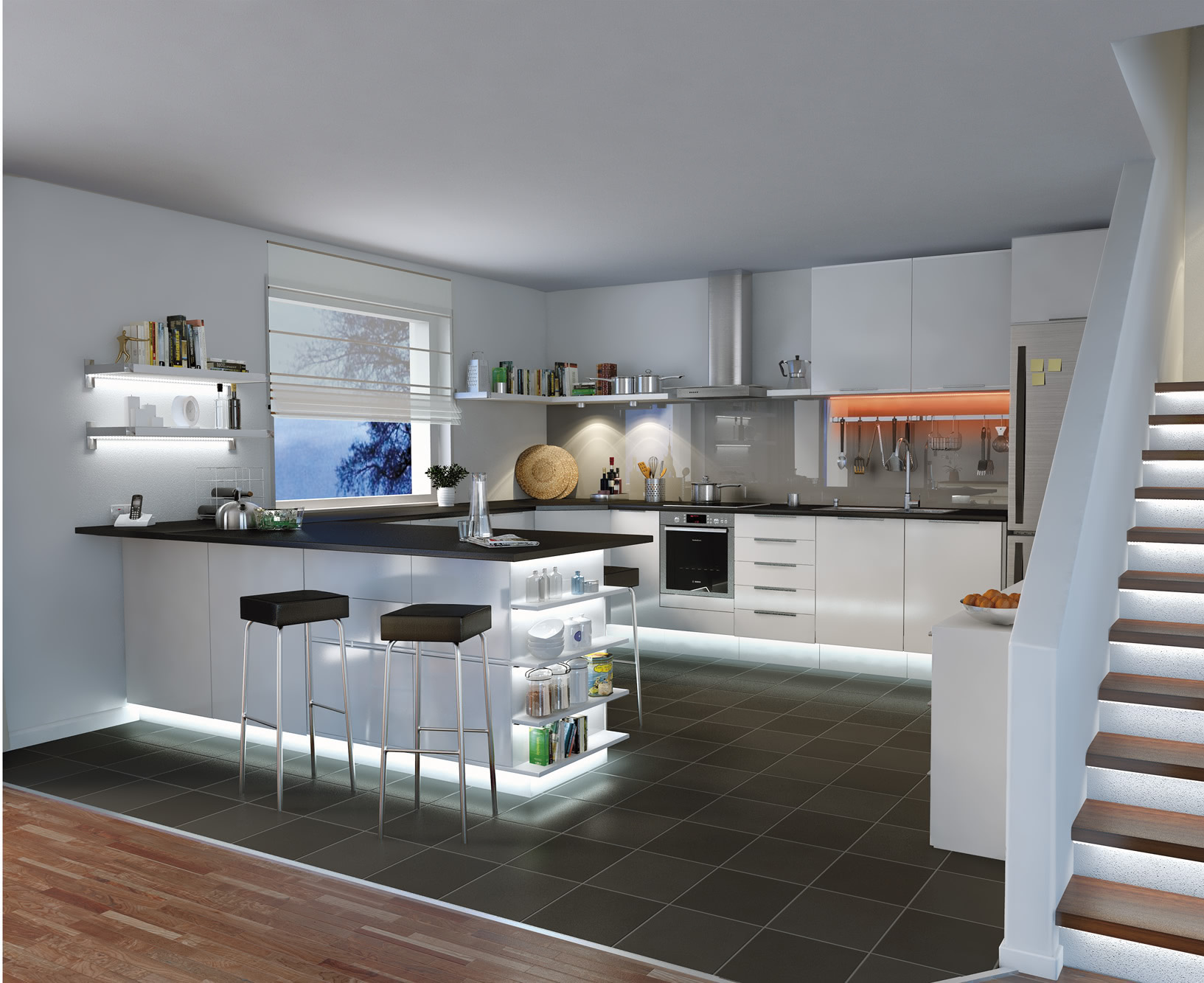

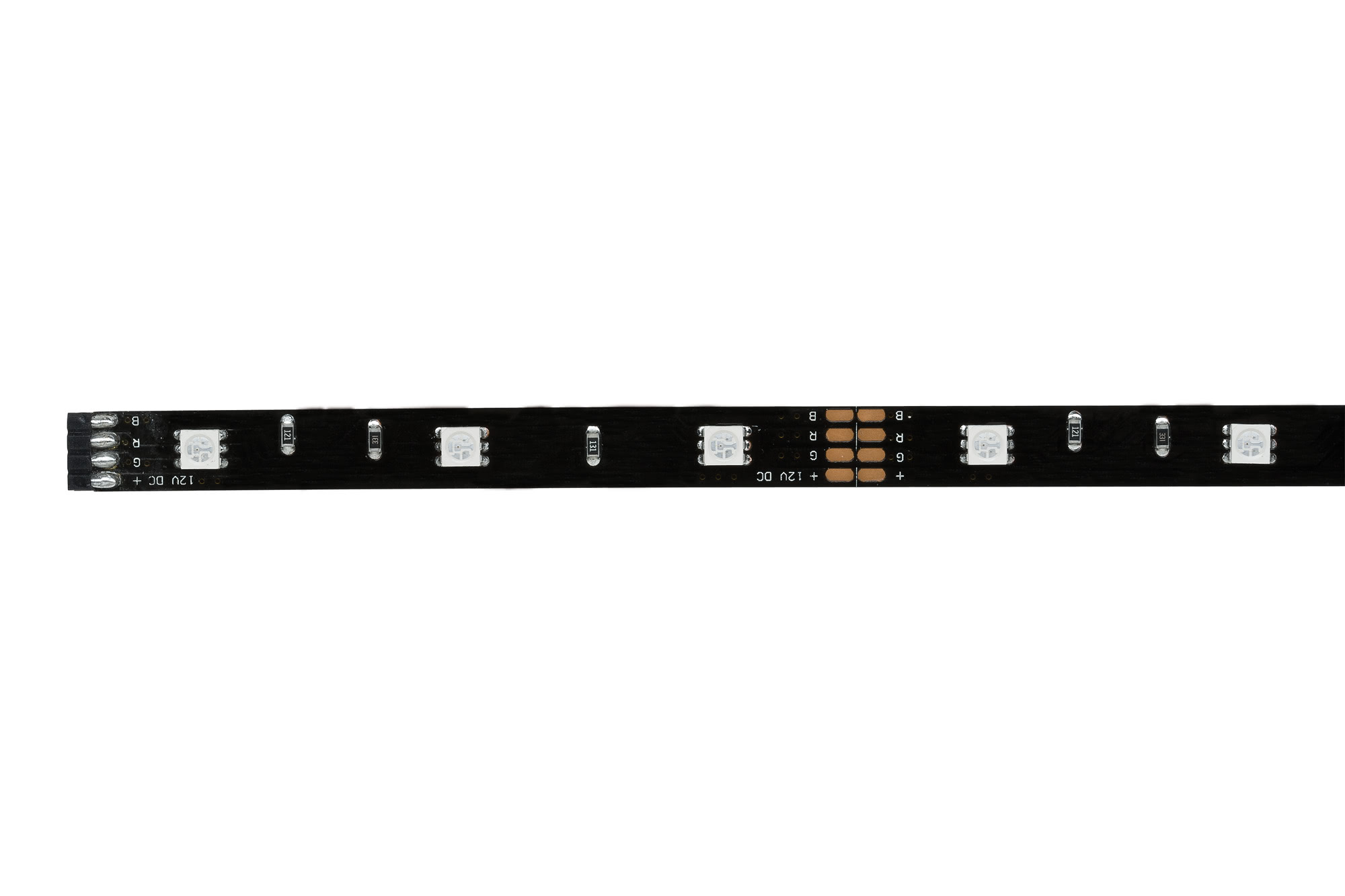

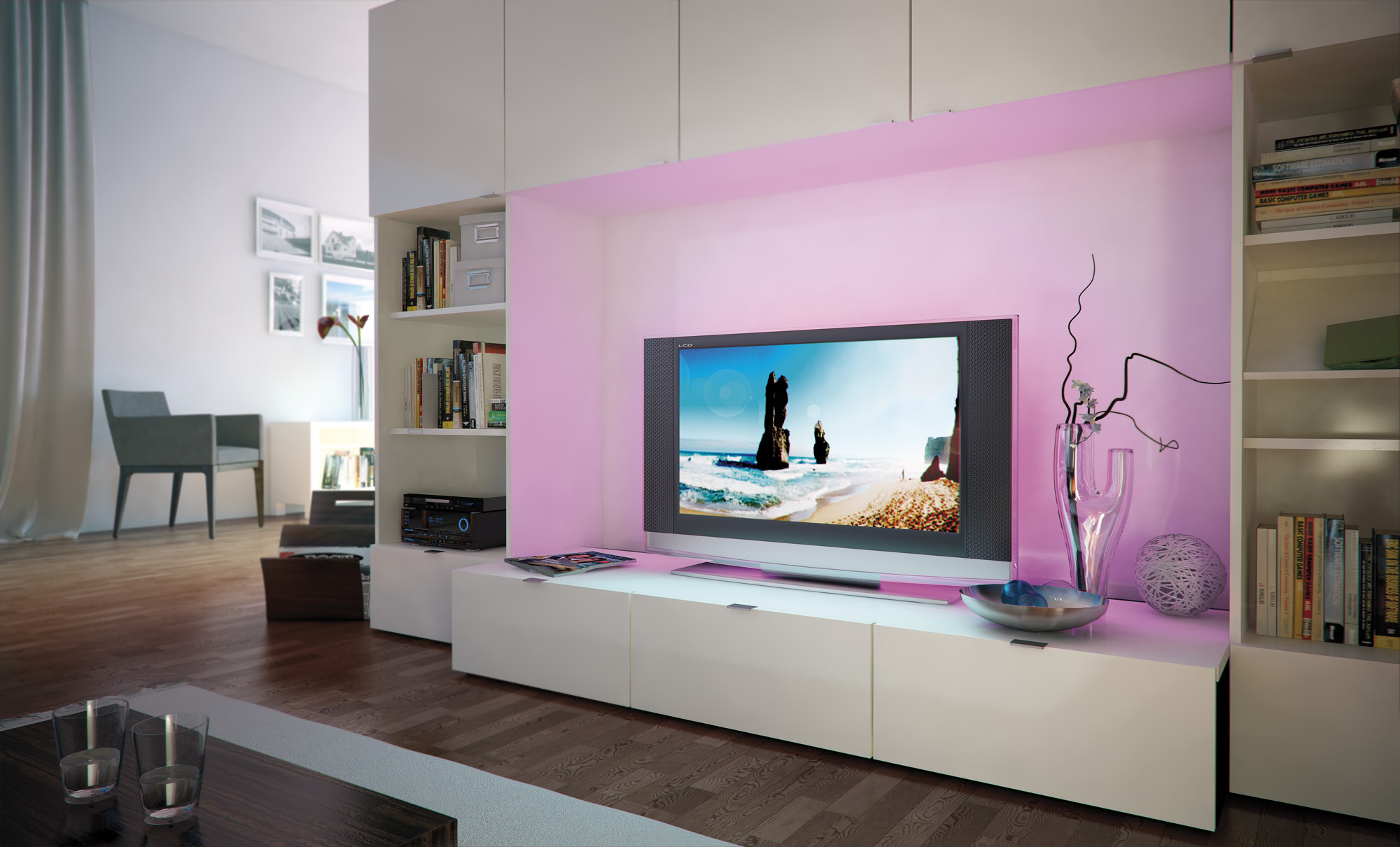

Uncoated YourLED ECO LED strips with RGB colour change system for ambient lighting effects. Operation and control via YourLED RGB controller only. Easy installation by means of adhesive backing and plug-in system. Shortened ECO strips can be reused by means of accessories. Please select the required power supply based on the total strip length.

  ARTICLE    70198 ( 701.98 )
  EAN    4000870701980       0
  Anzahl BestГјckung    1x
  Anzahl LEDs pro Meter    30
  Ausstrahlwinkel    120 В°
  Beam angle    120 В°
  Bemessungs-/Nutzlichtstrom    105 lm
  Bemessungslebensdauer    30000 h
  Bemessungsleistung    3,6 W
  BestГјckung    3 W

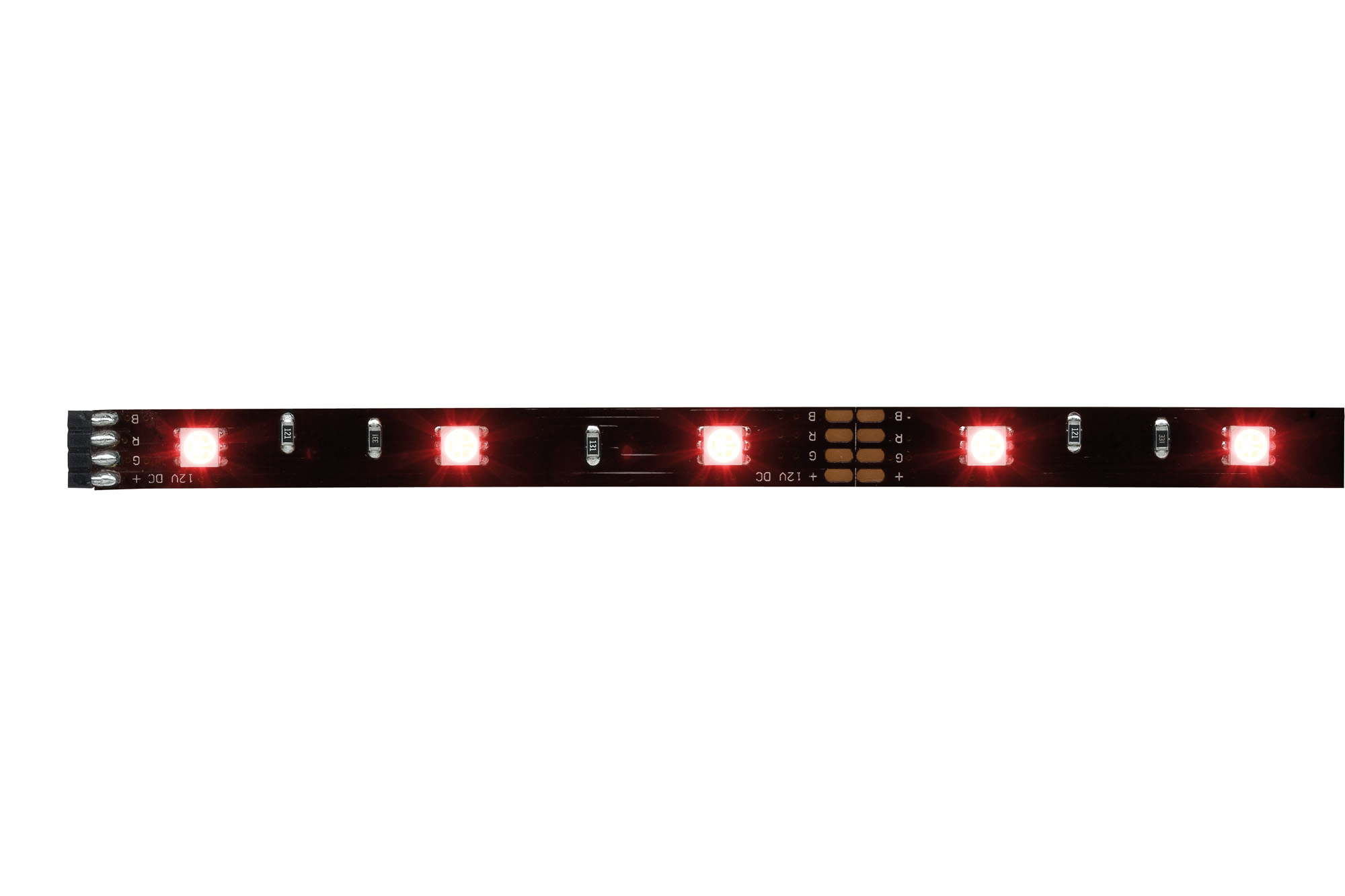

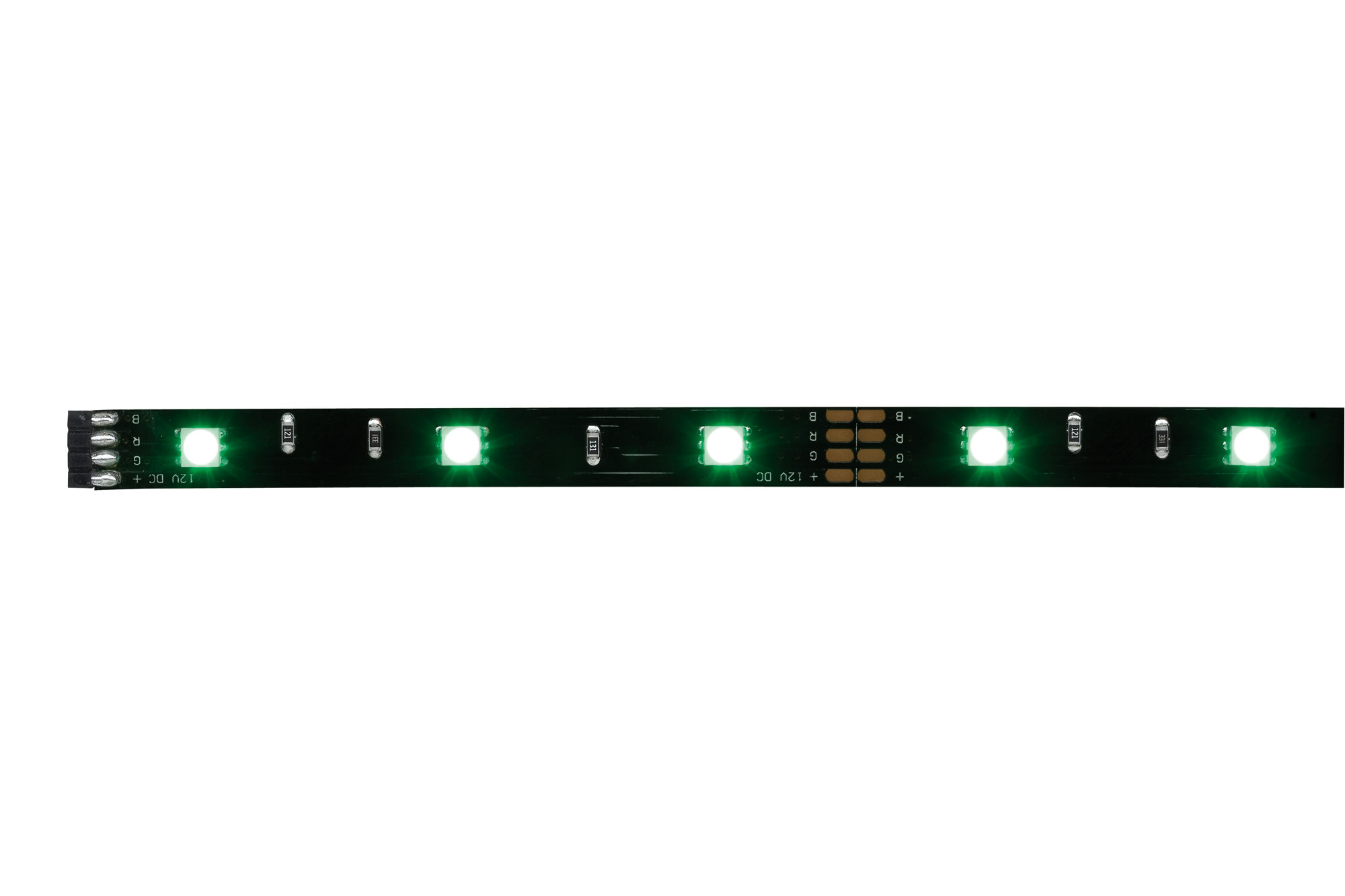

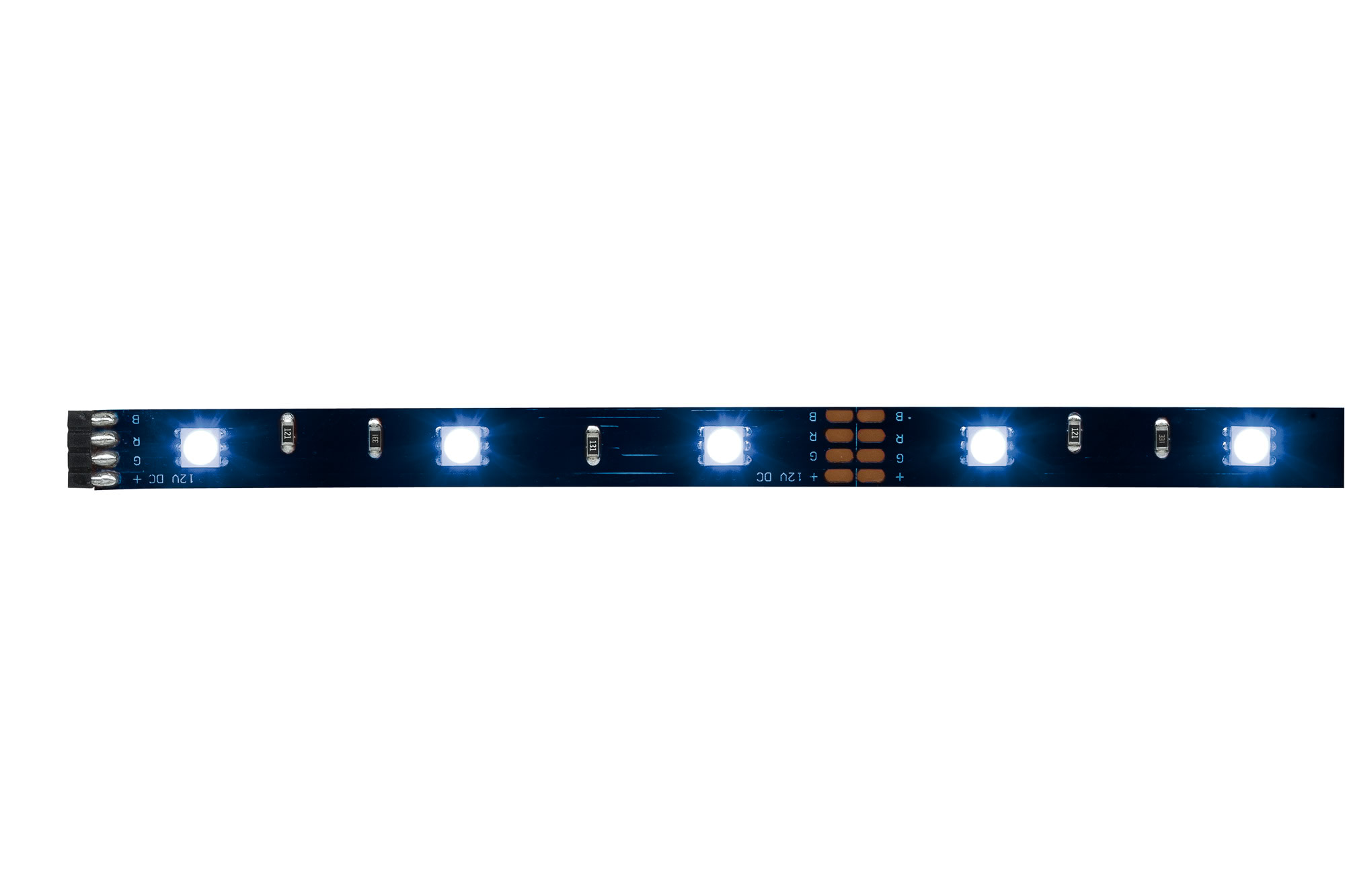

  Color change RGB    RGB colour change
  Colour    Black
  Depth    10,5 mm
  Dimensions (Height x Width x Depth)    H: 2,5 T: 10,5 mm
  Dimmable    Yes
  Dimmbar    Ja
  Farbe    Schwarz
  Farbwechsel    Farbwechsel RGB
  Halbwertswinkel    120 В°
  Height    2,5 mm
  Inclusive lamp    Yes
  Inklusive Leuchtmittel    Yes
  Installation site    Universal
  Installation site (recommendation)    Universal
  LED    120 Grad
  LED-color blue    LED-color blue
  LED-color green    LED-color green
  LED-color red    LED-color red
  LED-colour blue    LED-colour blue
  LED-colour green    LED-colour green
  LED-colour red    LED-colour red
  Lebensdauer    30.000 h
  Length    0,5 m
  LГ¤nge    0,5 m
  MM symbol    MM symbol
  MM-Zeichen    MM-Zeichen
  Material    Metal
  Montageort Empfehlung    Universal
  Nennlichtstrom (Lumen)    55 lm
  Number of LED"s per meter    30
  Number of component parts    1x
  Operating voltage    DC 12 V
  Protection class    Protection class III
  Rated life time    30000 h
  Rated luminous flux (Lumen)    105 lm
  Rated power    3,6 W
  Schutzklasse    Schutzklasse III
  Spannung    DC 12 V
  Technik    LED
  Technique    LED
  Technology    LED
Видео светильника Paulmann 70198  ">  Video    Видео светильника Paulmann 70198
  Width    500 mm
  ZГјndzeit <    0,0 s
  Color    Black
  Color change    Color change RGB
  Component parts    3 W
  Depth product    10,5 mm
  Height product    2,5 mm
  Life    20.000 h
  Lifetime    30.000 h
  Luminous flux (lumen)    105 lm
  Marketing type    Individual components
  Mit Steckverbinder    Mit Steckverbinder
  Packing unit SAP    1
  Plug-and-socket connector    Plug-and-socket connector
  Rated beam angle    120 В°
  Starting time <    0,0 s
  Useful luminous flux    55 lm
  Watt    3,6 W
  Width product    500 mm
  Инструкция    Установка светильника Paulmann 701.98
