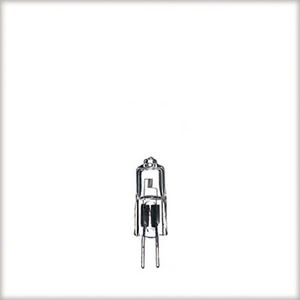

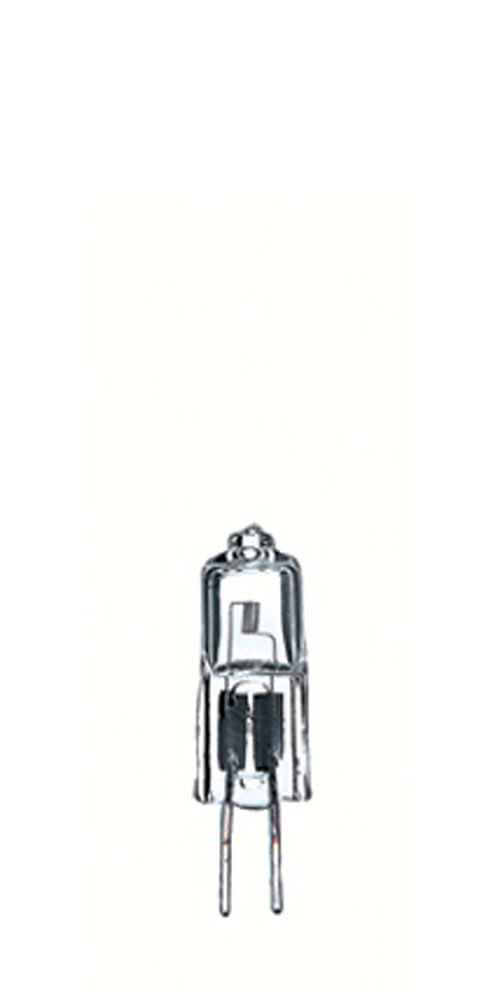

Halogen Lamps

Small, compact and powerful. Pin base for use in the smallest lamps or spot heads.

  ARTICLE    83117 ( 831.17 )
  EAN    4000870831175       0
  ⌀    9 mm
  Color rendering index    100 Ra
  Color rendering index (CRI)    100 Ra
  Colour    Clear
  Dimensions (Height x Width x Depth)    H: 33 mm
  Dimmable    With dimmer R, L, C (universal compatibility)
  Energy consumption    22 kWh_1000h
  Farbtemperatur    2900 K, 2.900 K
  Height    33 mm
  Number of component parts    2x
  Number of switching cycles >=    8000
  Operating voltage    12 V
  Power factor    1
  Rated life time    2000 h
  Rated luminous flux    254 lm
  Rated luminous flux (Lumen)    290 lm
  Rated power    20 W
  Rated-/Useful luminous flux    290 lm
  Socket    G4
  Starting time <    0.0 s
  Starting time up to 60% luminous flux    0 s
  Technique    12V Halogen
  Technology    12V Halogen
  Type    Bipin
  UV stop    UV-Stop
  Video    Видео светильника Paulmann 83117  Видео светильника Paulmann 83117
  Color    Clear
  Color temp.    2900 K
  Color temperature    2900 K
  Component parts    20 W
  Depth packing    8.7 cm
  Diameter product    9 mm
  Don"t touch Bipin    Don"t touch Bipin
  Don\"t touch Bipin    Don"t touch Bipin
  Energy efficiency    C
  Energy efficiency (A++ to E)    C
  Energy efficiency index (EEI)    21.2
  Height packing    0.6 cm
  Height product    33 mm
  Life    2.000 h
  Lifetime    2.000 h
  Light flux    254 lm
  Low pressure    Low pressure
  Luminous flux    254 lm
  Luminous flux at the end of lamplife    85 %
  Luminous flux preservation    85 %
  Packing unit SAP    10
  Useful luminous flux    290 lm
  Watt    2x20 W
  Width packing    5.5 cm
