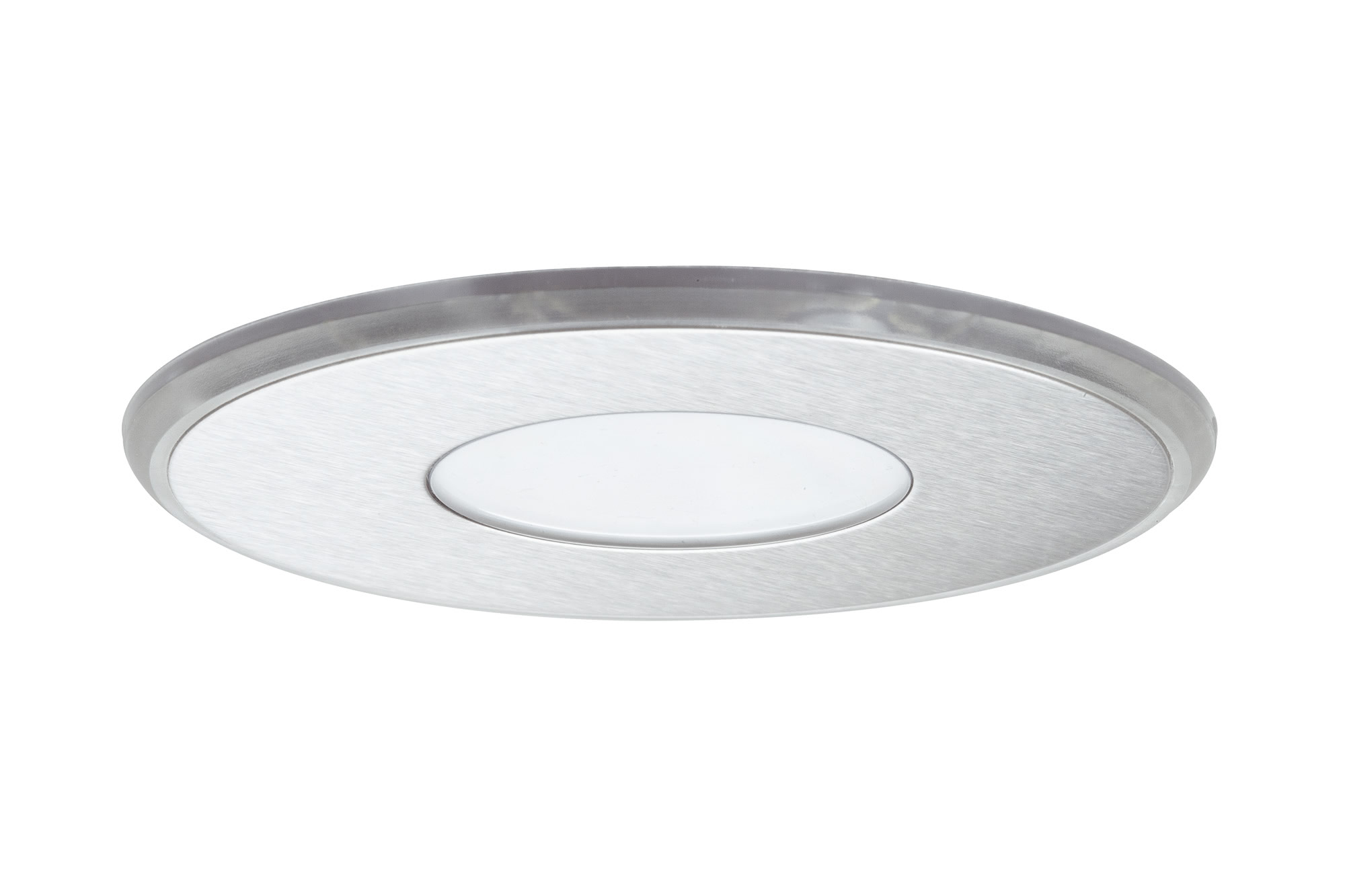

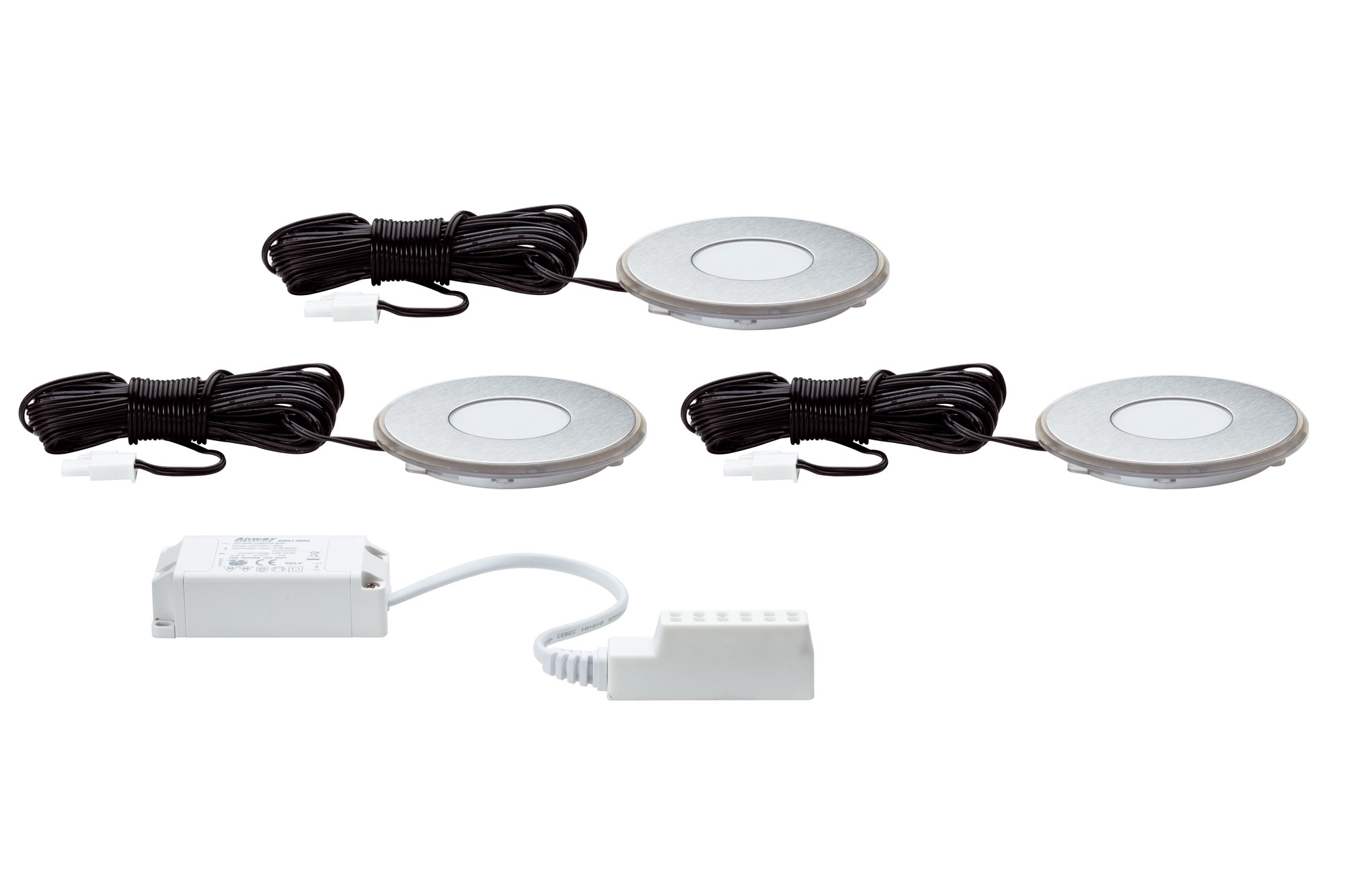

LED Recessed Downlights

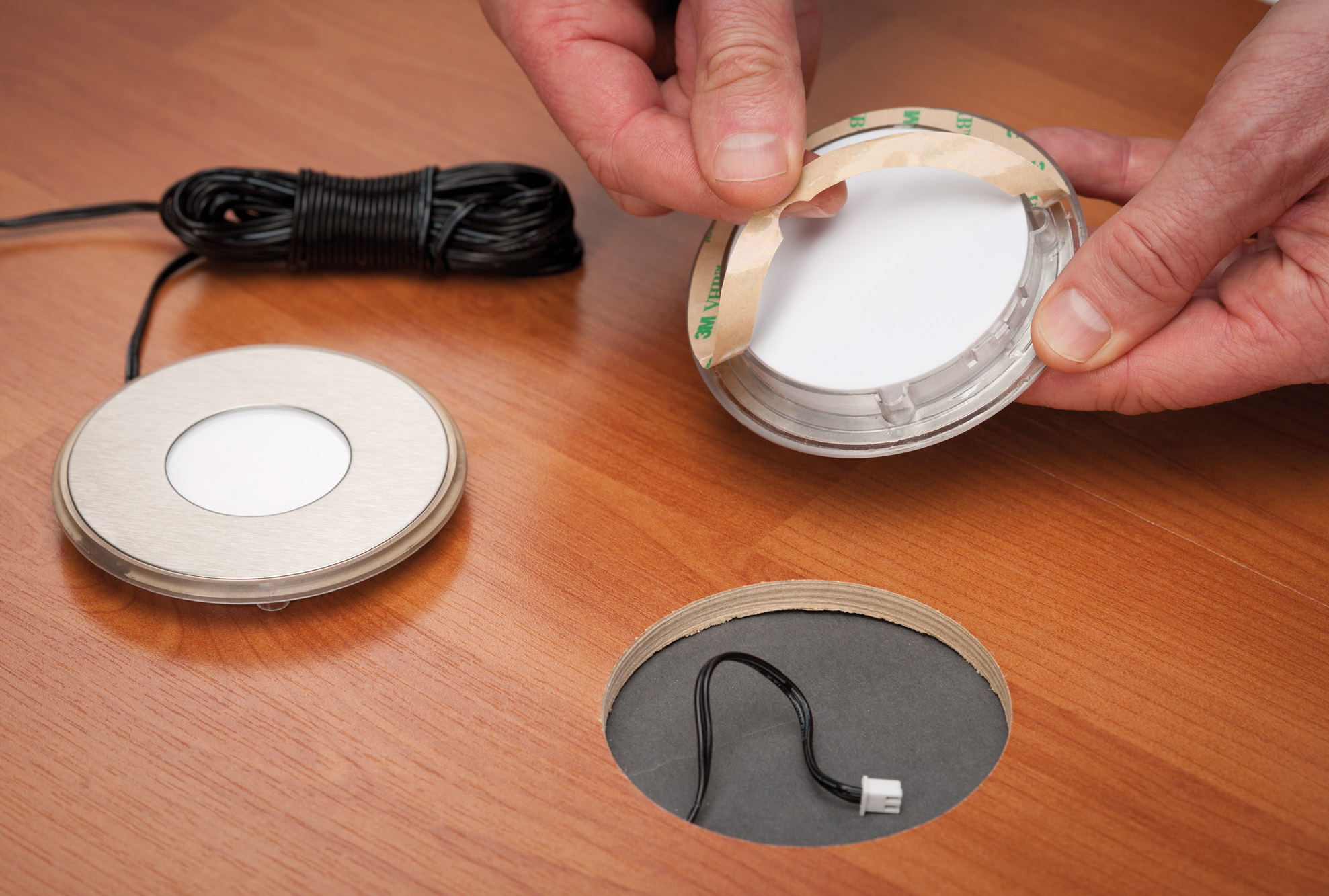

Whether as an uplight or downlight: Regardless of the installation position, -UpDownlight- recessed lighting is ideal for setting light accents or serving as orientation lighting: Merely 12mm thick, the Special Line recessed light is ideally suited for installation in laminated floors. The decorative illuminated outer ring makes this lamp a real eye-catcher. Add to that: The assembly couldn"t be easier; adhesive tape on the bottom side of the lamp ensures a secure hold, completely without screws.

  ARTICLE    93768 ( 937.68 )
  EAN          0

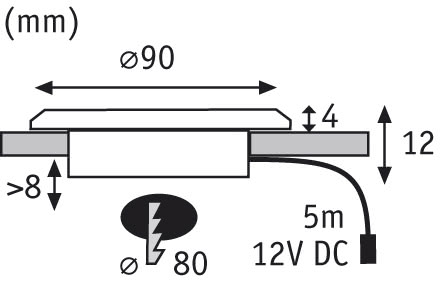

  ⌀    90 mm
  Anzahl BestГјckung    3x
  Ausstrahlwinkel    120 В°
  Beam angle    120 В°
  Bemessungs-/Nutzlichtstrom    13 lm
  Bemessungslebensdauer    20000 h
  Bemessungsleistung    1 W
  BestГјckung    1 W
  Colour    Stainless steel, Satin
  Dimensions (Height x Width x Depth)    H: 12 mm
  Dimmable    No
  Dimmbar    Nein
  Entspricht GlГјhlampe    9 W
  Farbe    Edelstahl, Satin
  Farbtemperatur    2700 K, 2.700 K
  Form    Rund
  Halbwertswinkel    120 В°
  IP Schutz    IP44
  IP protection    IP44
  Incandescent Equivalent    9 W
  Inclusive lamp    Yes
  Inklusive Leuchtmittel    Yes
  Installation site (recommendation)    Floor mounting
  Lebensdauer    20.000 h
  Lichtstrom LED-Modul    80 lm
  LichtstГ¤rke    4 cd
  Luminous flux LED module    80 lm
  Luminous intensity    4 cd
  Material    Edelstahl, Polycarbonate
  Montageort Empfehlung    Bodenmontage
  Mounting depth    8 mm
  Mounting hole    80 mm
  Nennlichtstrom (Lumen)    14 lm
  Number of LED"s per meter    NULL
  Number of component parts    3x
  Power consumption    3,6 W
  Rated life time    20000 h
  Rated luminous flux (Lumen)    13 lm
  Rated power    1 W
  Rostfrei    Rostfrei Edelstahl
  Schutzklasse    Schutzklasse II
  Spannung    230 V
  Technik    LED
  Technique    LED
  Trafoleistung    3,6 VA
  Transformer depth    80 mm
  Transformer height    23 mm
  Transformer power    3,6 VA
  Transformer width    38 mm
  Vermarktungstyp    Set
  WEEE-Reg.-No    DE 39236390
  ZГјndzeit <    0,0 s
  Aufgenommene Leistung    3,6 W
  Color temp.    2700 K
  Component parts    1 W
  Depth of hollow wall    8 mm
  Lifetime    20.000 h
  Marketing type    Set
  Max. Belastbarkeit    140 kg
  Maximum load    140 kg
  Operating voltage    230 V
  Protection class    Protection class II
  Rated beam angle    120 В°
  Stainless    Stainless steel
  Starting time <    0,0 s
  Useful luminous flux    14 lm
  Инструкция    Установка светильника Paulmann 937.68
  P2015    226 страница
