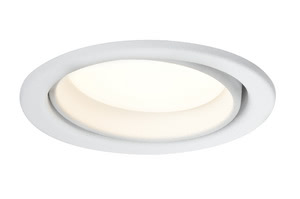

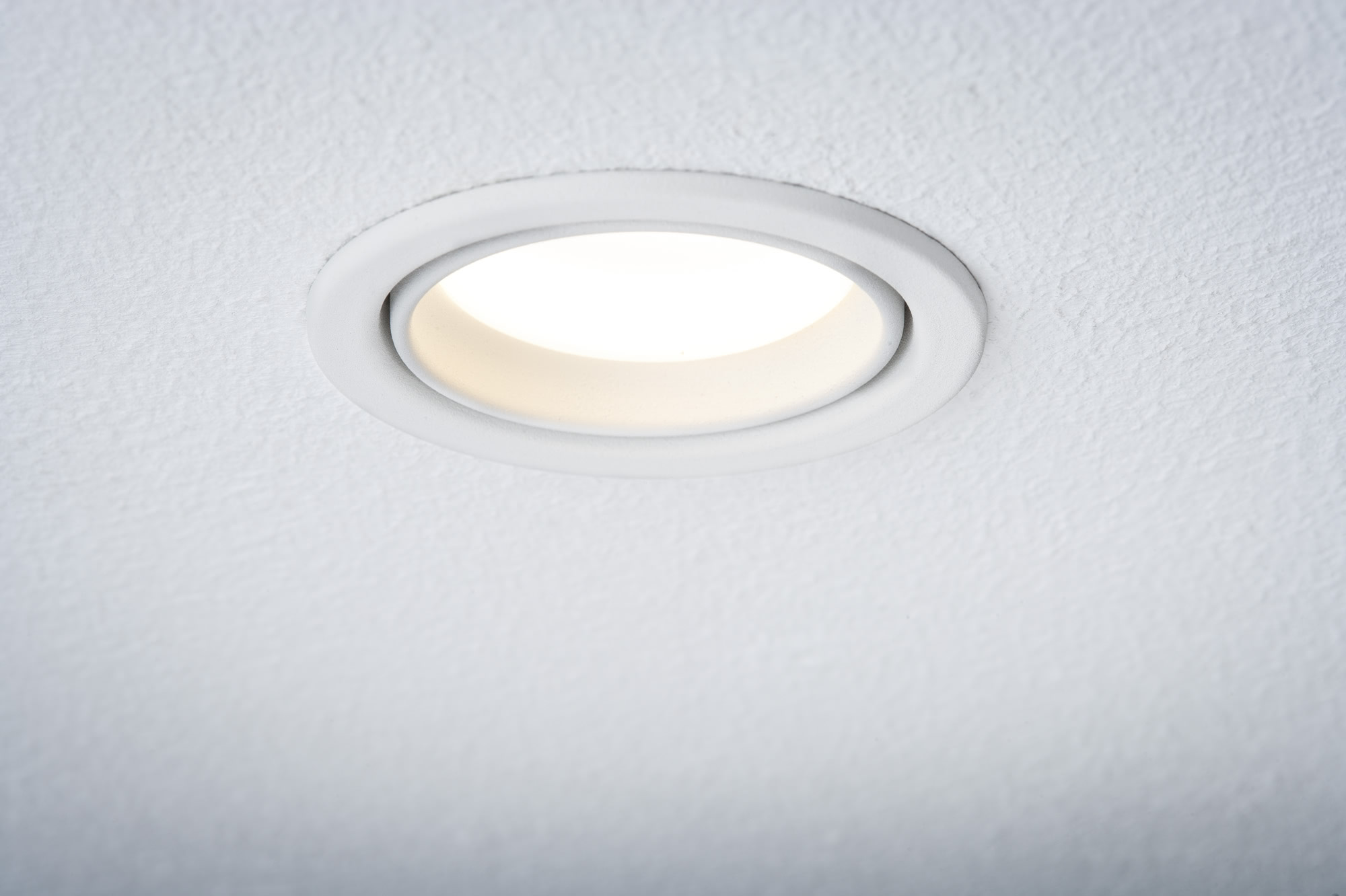

LED Recessed Downlights

The Aya quality LED recessed luminaire provides ideal light distribution thanks to its integrated multichip LEDs and, due to its satined panel, is totally glare-free. The white powder coated surface also satisfies the most demanding possible requirements in material quality and design.

  ARTICLE    92022 ( 920.22 )
  EAN          0
  ⌀    90 mm
  Beam angle    120 В°
  Colour    White
  Depth    10,5 mm
  Dimmable    No
  Height    3 mm
  Inclusive lamp    Yes
  Installation site    Ceiling mounting
  Installation site (recommendation)    Ceiling mounting
  MM symbol    MM symbol
  Material    Metal

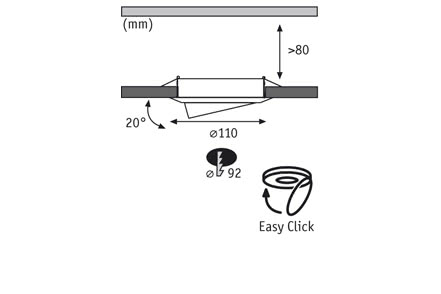

  Mounting depth    60 mm
  Mounting hole    80 mm
  Number of component parts    3x
  Operating voltage    230/12 V

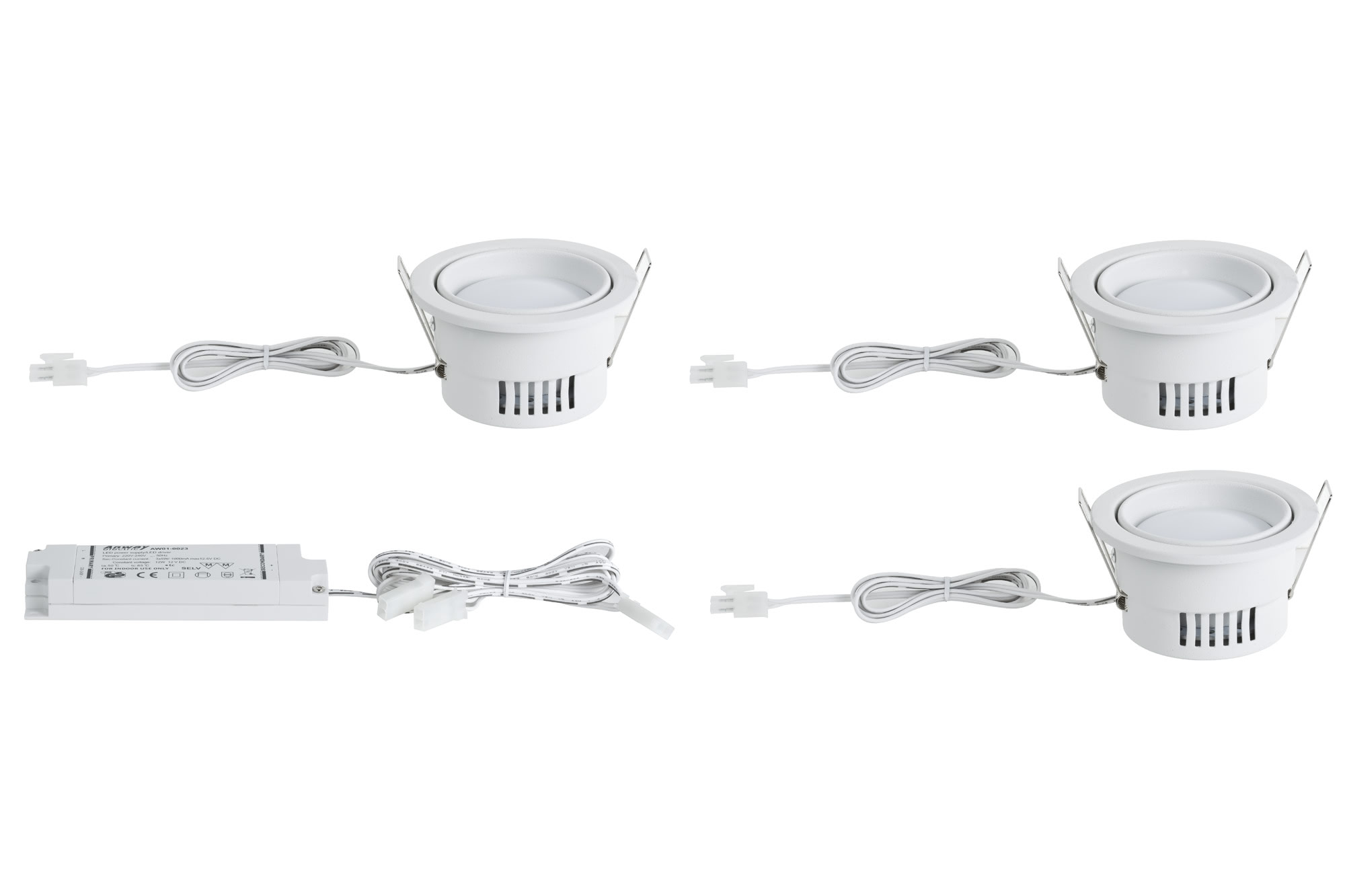

  PROPERTIES    Set of 3 lamps including LED, 3x3W, Material: Metal, Color: White, Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs), incl. plug-in connector and transformer, mounting depth: 60mm, Diameter: 90mm, operating voltage: DC 12 V, protection class II, Color temperatur: 3000K - Warm white
  Power consumption    12 W
  Protection class    Protection class II
  Rated life time    20000 h
  Rated luminous flux (Lumen)    140 lm
  Rated power    3 W
  Swivel range    10 В°
  Technique    LED
  Technology    LED
  Trafoleistung    12 VA
  Transformer power    12 VA
Видео светильника Paulmann 92022  ">  Video    Видео светильника Paulmann 92022
  Width    975 mm
  Color    White
  Color temp.    3000 K
  Component parts    3 W
  Depth of hollow wall    45 mm
  Form    Round
  Life    20.000 h
  Lifetime    20.000 h
  Plug-and-socket connector    Plug-and-socket connector
  Rated beam angle    120 В°
  Starting time <    0,0 s
  Useful luminous flux    140 lm
  Watt    Incl. 3x3 W
  Инструкция    Установка светильника Paulmann 920.22
  P2015    317 страница
