LED Recessed Downlights

3x1 W, 230 V, 12 VA, Polycarbonate, incl. lamps

  ARTICLE    98862 ( 988.62 )
  EAN    4000870988626       0
  Beam angle    120 В°
  Bemessungslebensdauer    30000 h
  Bemessungsleistung    1 W
  Colour    Satin

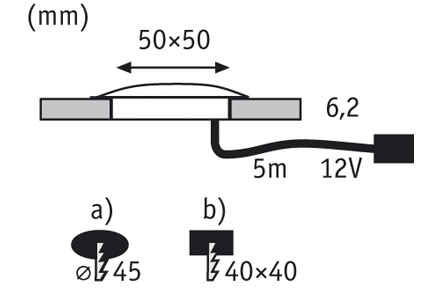

  Depth    50 mm
  Dimensions (Height x Width x Depth)    H: 10 x B: 50 x T: 50 mm
  Dimmable    No
  Farbtemperatur    6500 K, 6.500 K
  Form    Eckig
  Halbwertswinkel    120 В°
  Height    10 mm
  IP protection    IP67
  Inclusive lamp    Yes
  Inklusive Leuchtmittel    Yes
  Installation site    Floor mounting
  Installation site (recommendation)    Floor mounting
  Lebensdauer    30.000 h
  LichtstГ¤rke    13 cd
  Load    Max. load 130kg
  Luminous intensity    13 cd
  MM symbol    MM symbol
  MM-Zeichen    MM-Zeichen
  Material    Polycarbonate
  Max. load    130 kg
  Montageort Empfehlung    Bodenmontage
  Mounting depth    6,2 mm
  Mounting hole    45 mm
  Number of LED"s per meter    NULL
  Number of component parts    3x
  Operating voltage    230 V
  Power consumption    4 W
  Protection class    Protection class II
  Rated life time    30000 h
  Rated power    1 W
  Technique    LED
  Technology    LED
  Trafoleistung    12 VA
  Transformer depth    122 mm
  Transformer height    18 mm
  Transformer power    12 VA
  Transformer width    38 mm
  VDE    VDE-transformer in light sets
Видео светильника Paulmann 98862  ">  Video    Видео светильника Paulmann 98862
  Width    50 mm
  ZГјndzeit <    0,0 s
  Angle of radiation    120 Grad
  Breadth product    50 mm
  Color    Satin
  Color temp.    6500 K
  Color temperature    6500-7000 K
  Component parts    1 W
  Depth of hollow wall    6,2 mm
  Depth product    50 mm
  Height product    10 mm
  Life    30.000 h
  Lifetime    30.000 h
  Marketing type    Set
  Maximum load    130 kg
  Mit Steckverbinder    Mit Steckverbinder
  Mounting opening    45 mm
  Packing unit SAP    1
  Plug-and-socket connector    Plug-and-socket connector
  Rated beam angle    120 В°
  Stainless    Stainless polycarbonate
  Starting time <    0,0 s
  Transformer    12 VA
  Watt    Incl. 3x1 W
  Working voltage    230 V
  Инструкция    Установка светильника Paulmann 988.62
