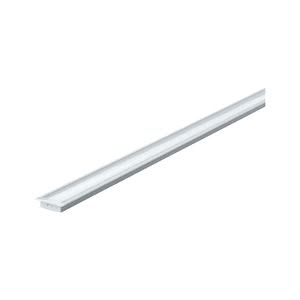

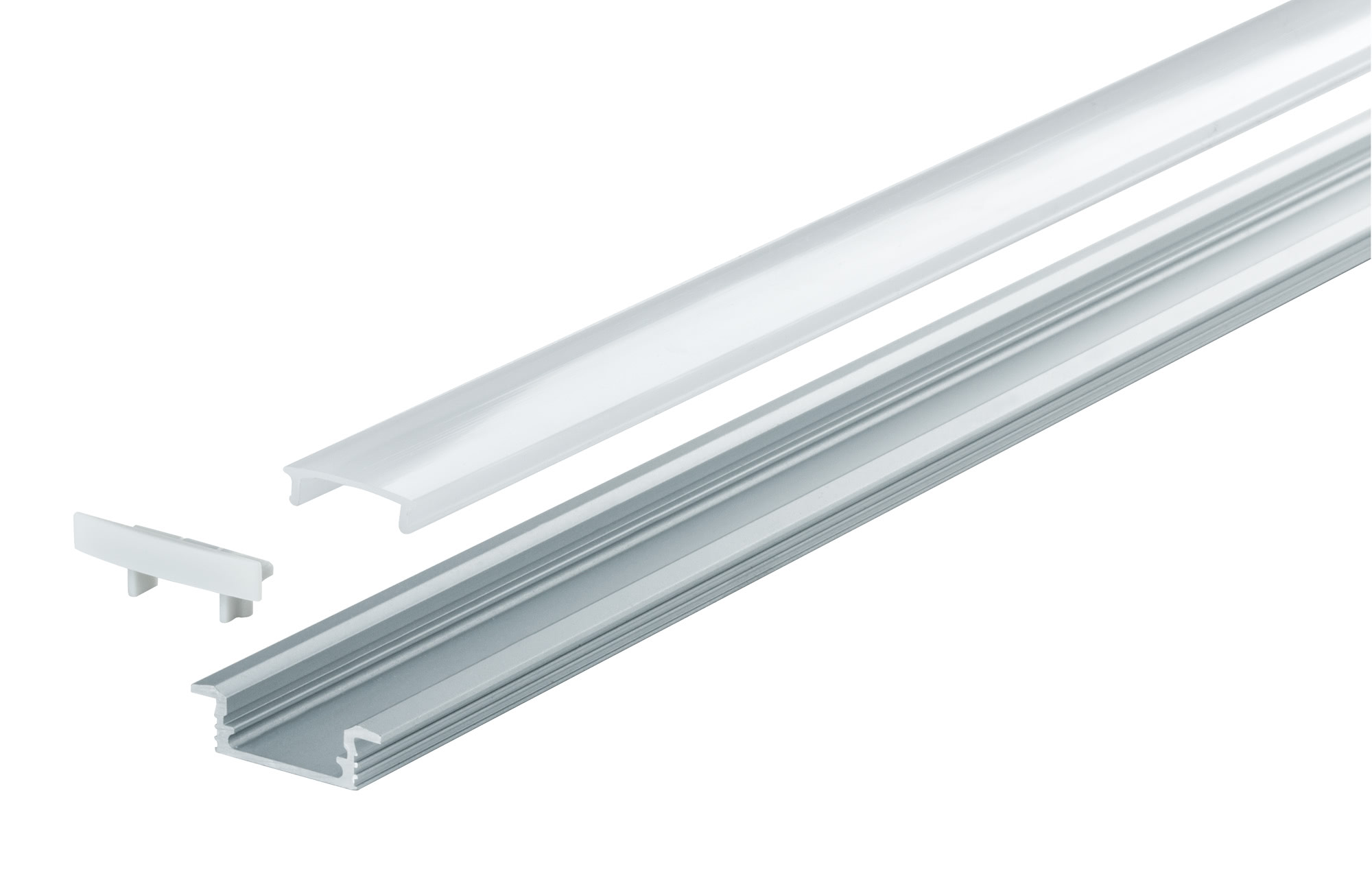

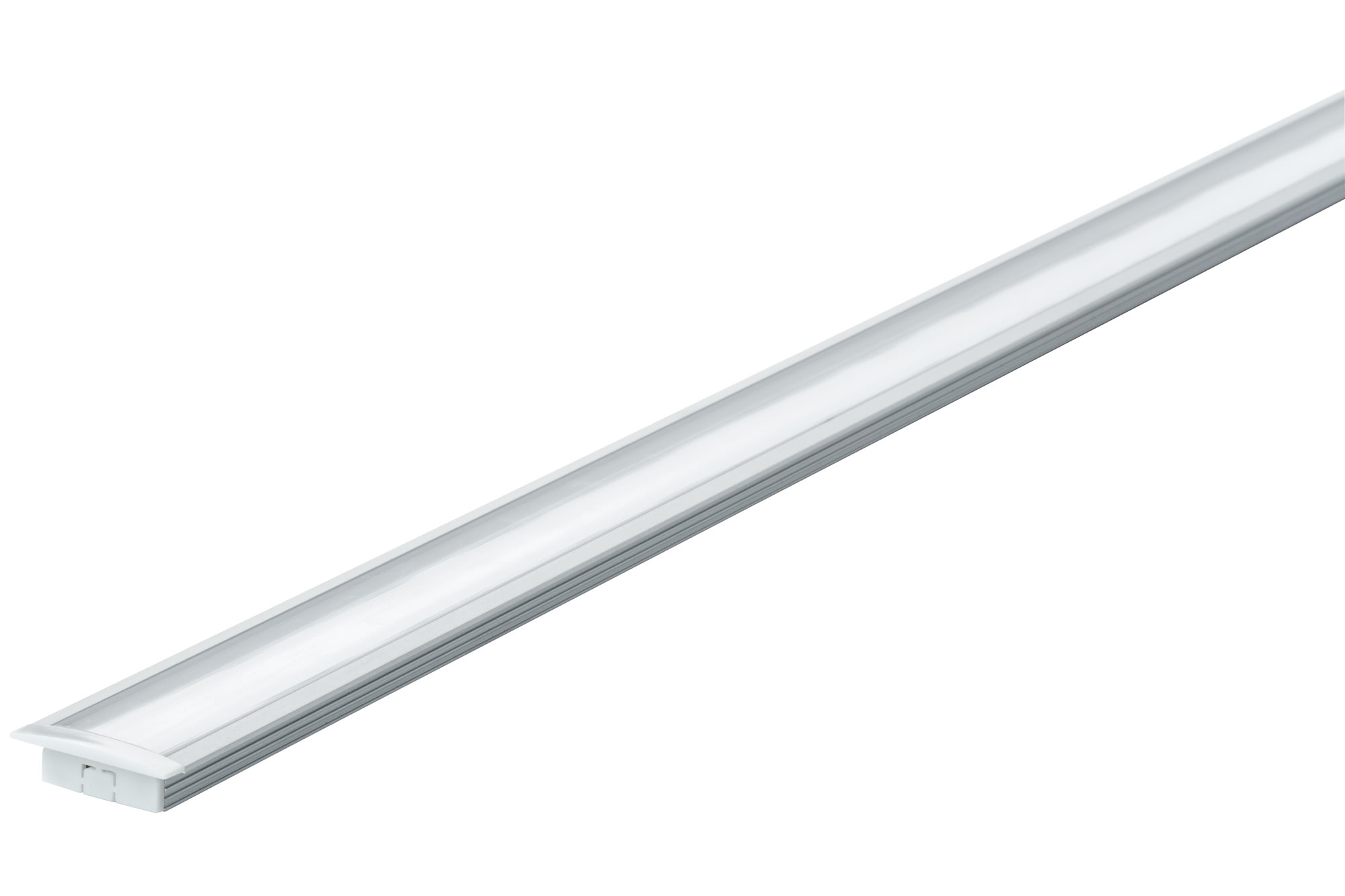

Floor profile with diffuser 200cm anodised aluminium, satin, aluminium/plastic

Profiles

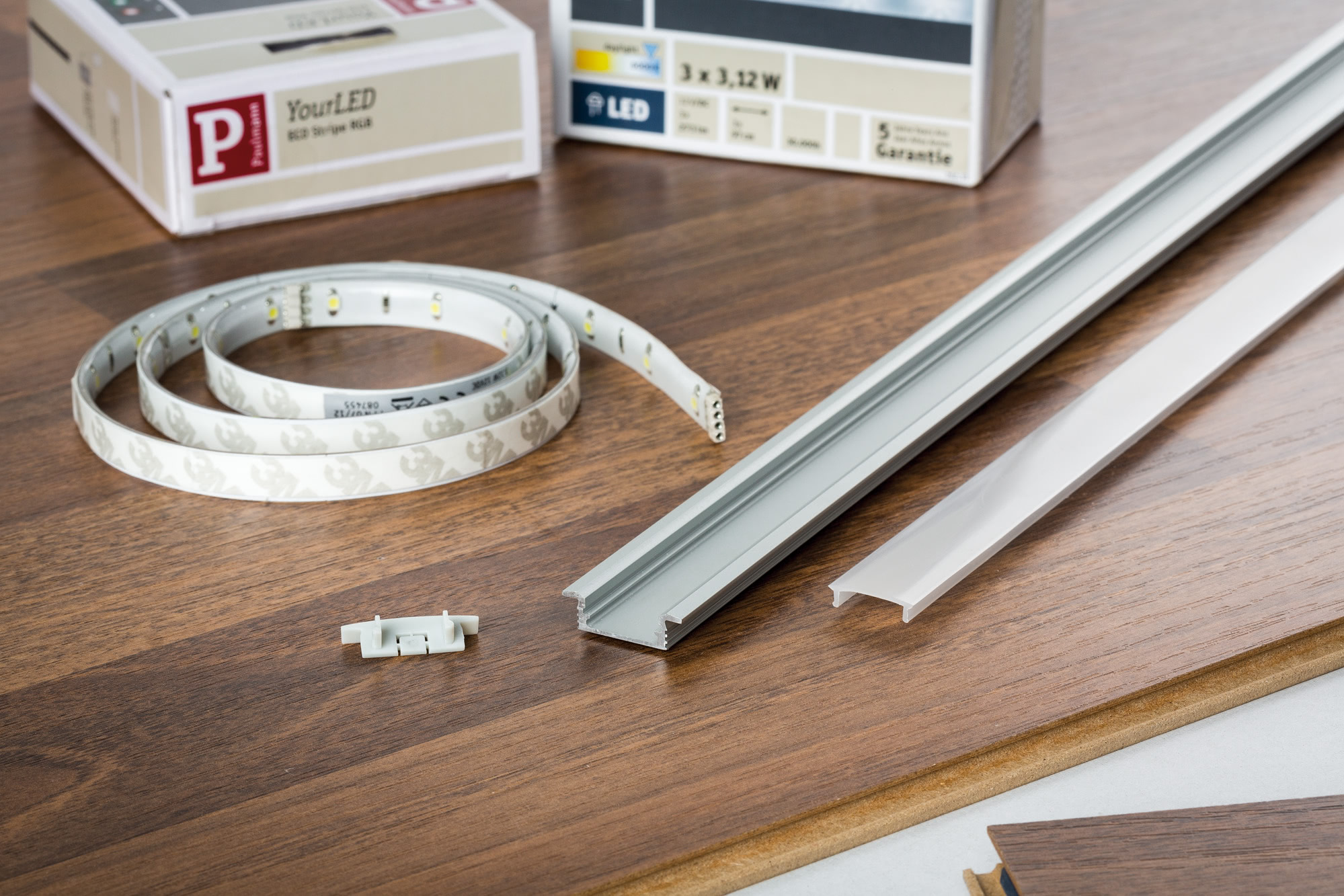

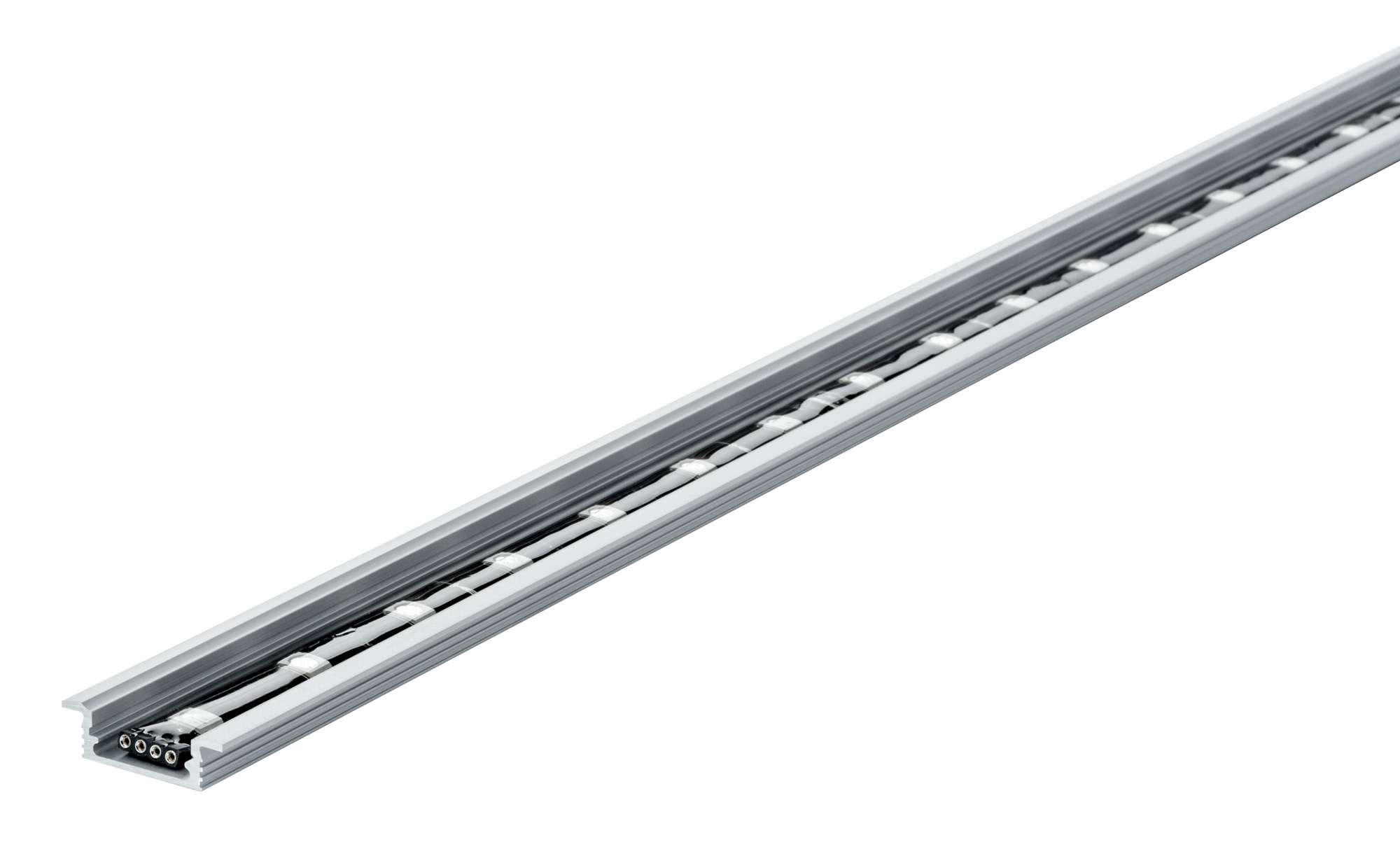

The Floor Profile can be fitted out with LED strips in the light colour of your choice, thus providing decorative effects for skirting boards and closing edges. It can also be used for orientation or guiding purposes in shady and hazardous areas. Continuous light with efficient LED placement. Can also be used as decorative edging or optical partition lines if required. The profile can stand loads of up to 130В kg, can be glued into floor surfaces from 8В mm in thickness or in furniture items with material thickness of at least 12В mm.

  ARTICLE    70409 ( 704.09 )
  EAN          0
  Colour    Aluminium, Satin
  Depth    27 mm
  Dimensions (Height x Width x Depth)    H: 9 x B: 2.010 x T: 27 mm
  Electronic ballast 30,000h    Square
  Height    9 mm
  Installation site    Floor mounting
  Installation site (recommendation)    Floor mounting
  Load    Max. load 130kg
  Material    Alu, Plastic
  Max. load    130 kg
  Mounting depth    7 mm
  Mounting hole    2.003 mm
  PROPERTIES    Including cable guides, Profile can be shortened according to required length, For fitting with the YourLED Strip system, With satined diffusor for uniform light distribution, Aluminium profile with cooling effect for LED Strips
  Width    2010 mm
  Color    Alu
  Depth of hollow wall    -8 mm
  Form    Square
  Maximum load    130 kg
  Mounting hole 2    20 mm
  Stainless    Stainless alu
  Starting time <    0,0 s
